2022 INFINITI QX55
STARTING METHOD:
Push Button
ENGINE TYPE:
Gas
+12V:
Blue
Dash Fuse Box, rear, black 1 pin plug, pin 1
IGNITION:
Tan
Dash Fuse Box, rear, white 32 pin plug, pin 5
STARTER:
Green(-)

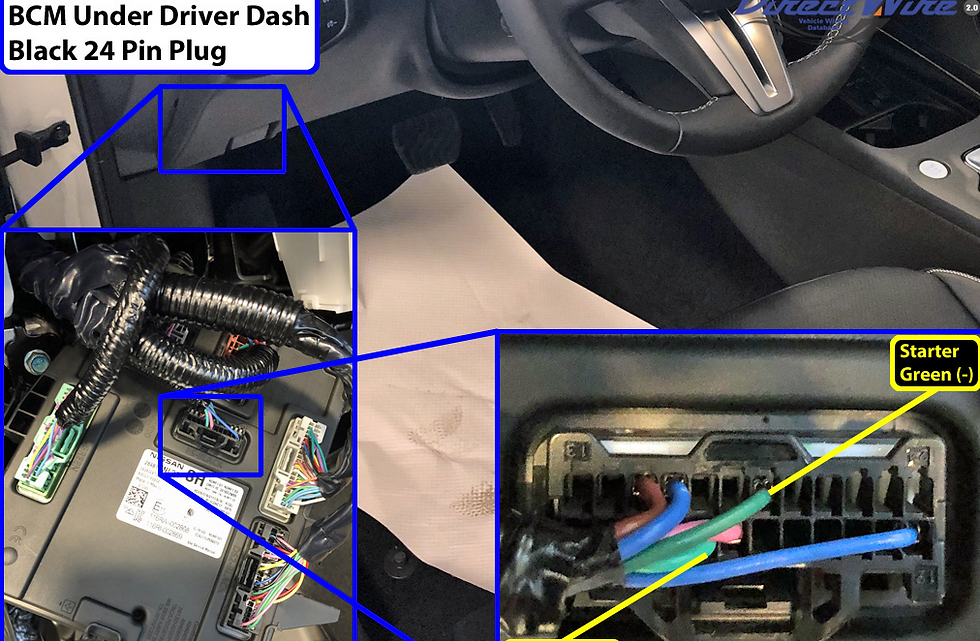

BCM under driver dash, black 24 pin plug, pin 19
HORN:
Gray(-)
Above Driver Kick, white 100 pin plug, pin 18
